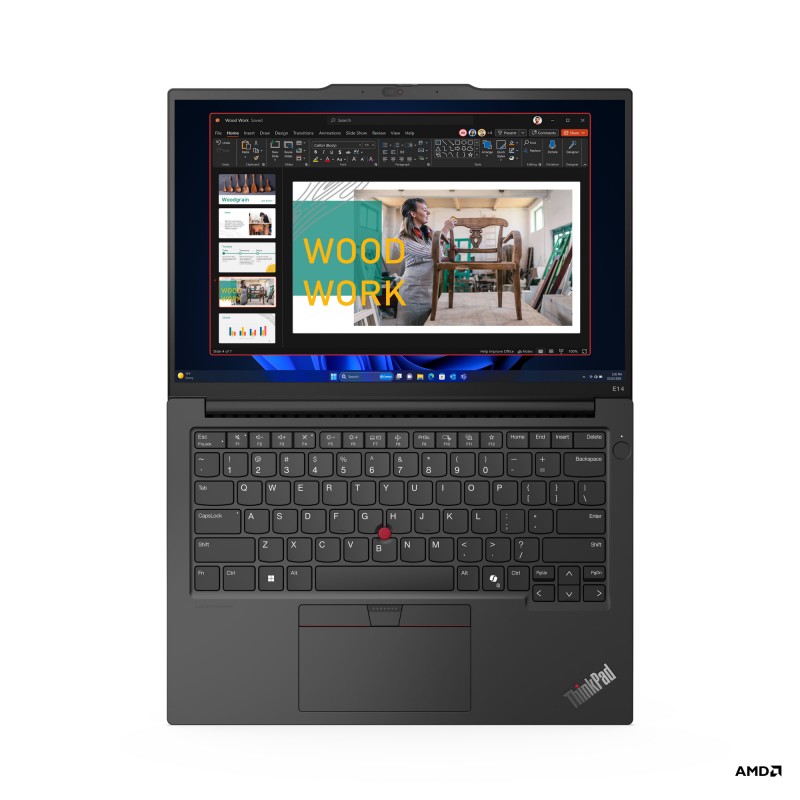

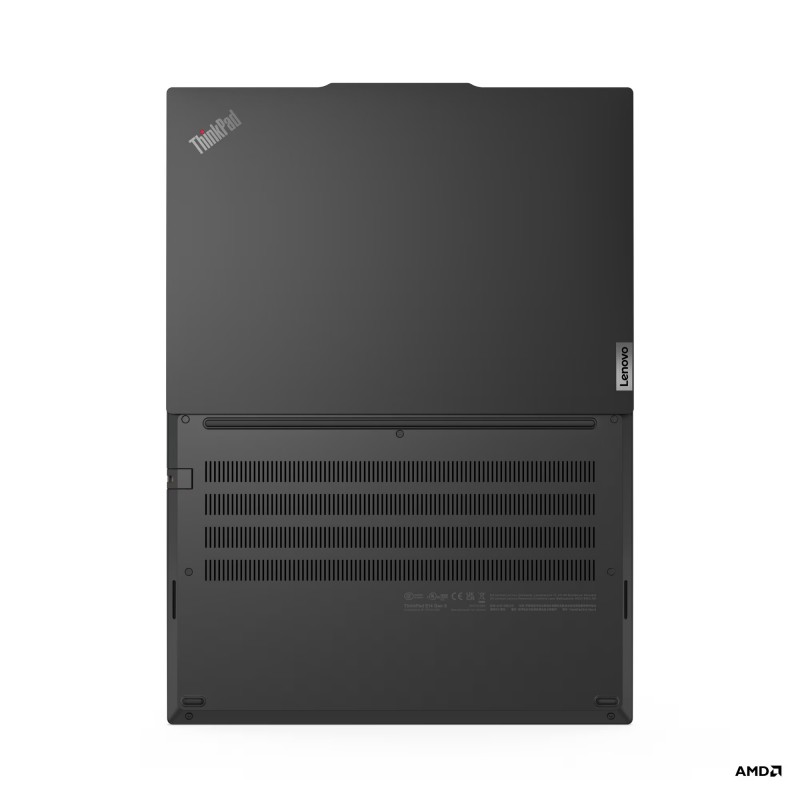

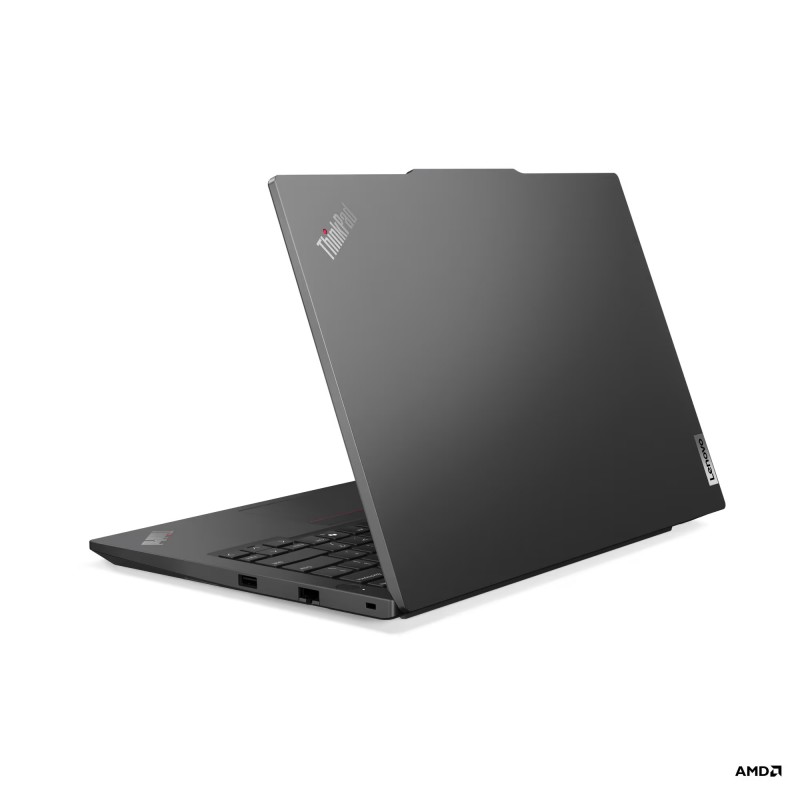

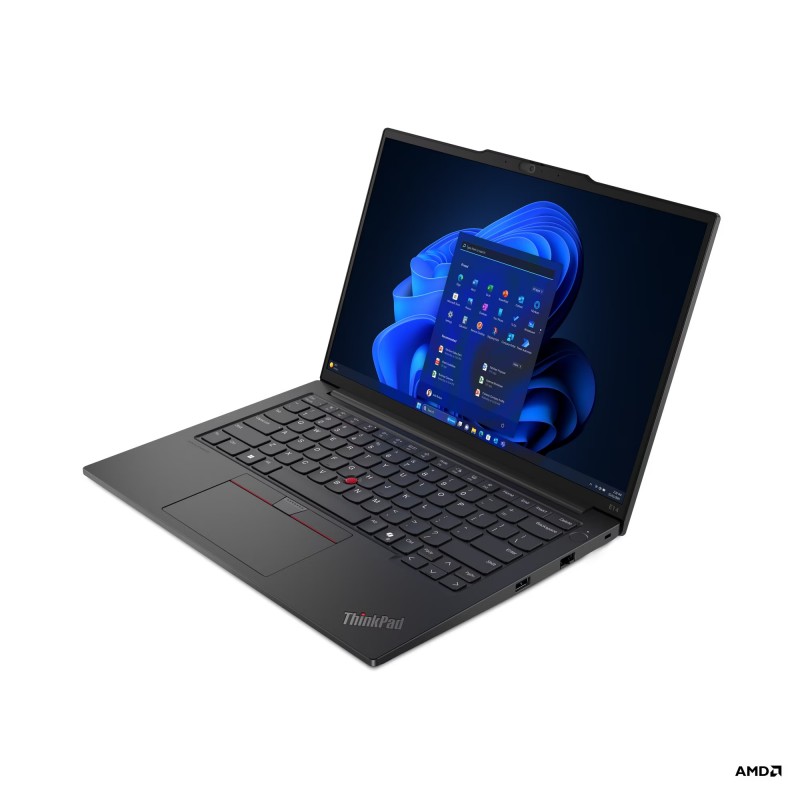

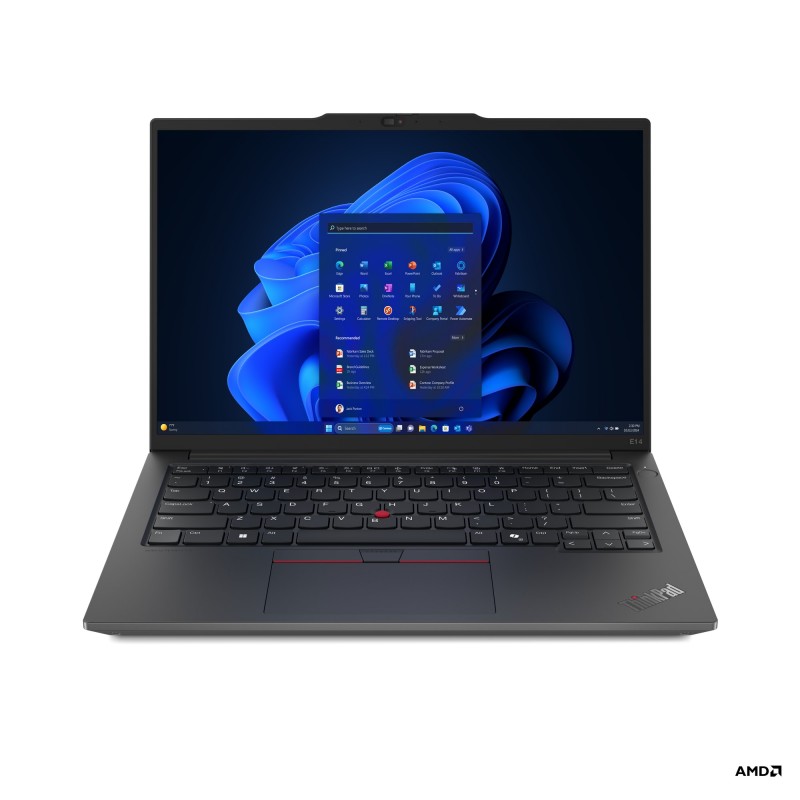

Lenovo ThinkPad E14 Gen 6 (AMD)

Processors:

• AMD Ryzen™ 3 7335U Processor (3.00 GHz, up to 4.30 GHz Max Boost, 4 Cores, 8 Threads, 8 MB Cache)
• AMD Ryzen™ 5 7535U Processor (2.90 GHz up to 4.55 GHz Max Boost, 6 Cores, 12 Threads, 16 MB Cache)
• AMD Ryzen™ 7 7735U Processor (2.70 GHz up to 4.75 GHz Max Boost, 8 Cores, 16 Threads, 16 MB Cache)

Display:

• 14″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC, touchscreen,
• 14″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC
• 14″ 2.2K (2240x1400) IPS, anti-glare, 16:10 aspect ratio, 300nits,  100% sRGB

Memory:

Max memory:  Up to 64GB DDR5-4800

Memory slots:  Two DDR5 SO-DIMM slots, dual-channel capable

Storage:  Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB

Graphics:

• AMD Radeon™ 660M
• AMD Radeon™ 680M

Operating system:

• Windows® 11 Pro
• Windows® 11 Home

Input device:

Keyboard: 6-row, spill-resistant, multimedia Fn keys, Copilot key

Keyboard Backlight: LED backlight (Optional)

UltraNav:

• TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
• Mylar® surface multi-touch touchpad, 56 x 115 mm (2.24 x 4.53 inches)

Multi-media:

Audio Chip: High Definition (HD) Audio, Senary SN6141 codec

Speakers: Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN

Microphone: Dual-microphone array with smart noise-cancelling

Camera:

• FHD 1080p + IR hybrid, with privacy shutter, fixed focus, temporal noise reduction
• FHD 1080p, with privacy shutter, fixed focus, temporal noise reduction
• HD 720p, with privacy shutter, fixed focus

Network:

Ethernet: Gigabit Ethernet, Realtek® RTL8111H-CG, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

• Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
• MediaTek Wi-Fi® 6 MT7921, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 Card
• Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
• Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
• Realtek® Wi-Fi® 6E RTL8852CE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card

WWAN: No support.

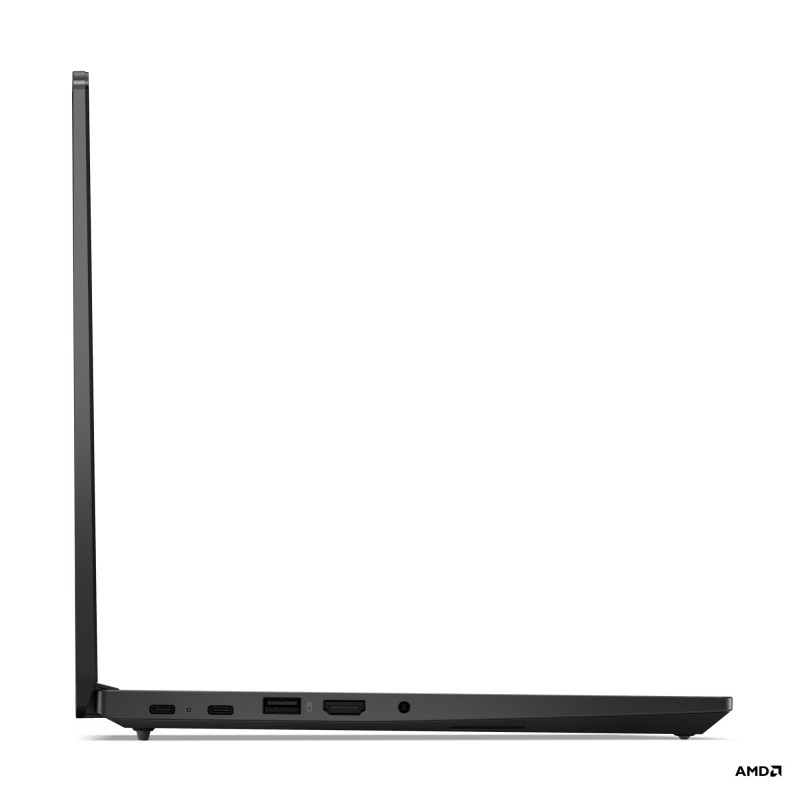

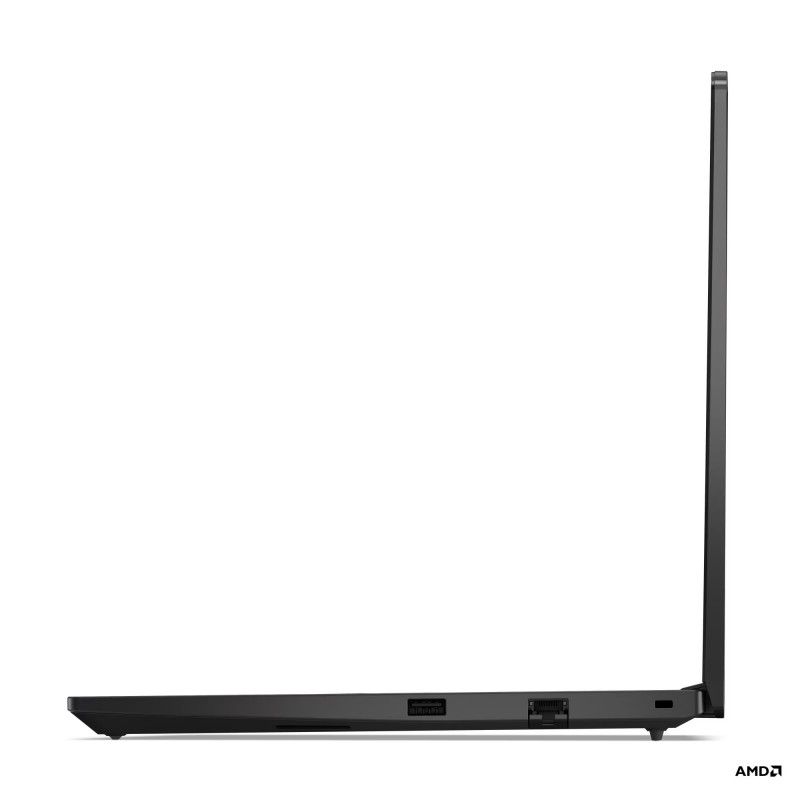

Ports/slots:

Standard Ports:

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
• 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.0 and DisplayPort™ 1.4
• 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
• 1x HDMI® 2.1, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)

System Management: Non-DASH

Security:

Security Chip:

• Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
• Discrete TPM 2.0 (TCG certified, FIPS 140-2 certified) and Microsoft® Pluton TPM 2.0, one enabled at one time

Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader:  Touch style fingerprint reader integrated in power button, match-on-chip  (optional)

BIOS Security:

• NVMe® password
• Power-on password
• Supervisor password
• System management password
• Certificate based BIOS authentication
• FIDO (Fast Identity Online) authentication
• Self-healing BIOS

Other Security:

• Camera privacy shutter
• (Optional) IR camera for Windows® Hello (facial recognition)

Battery:

• Integrated Li-Polymer 47Wh battery, supports Rapid Charge Pro (charge up to 50% in 30min)
• Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr)

Monitor Support:

Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)

• HDMI® supports up to 4K@60Hz
• USB-C® supports up to 4K@60Hz
• USB-C® supports up to 5K@60Hz

Mechanical:

Dimensions (WxDxH): 313 x 219.3 x 17.99 mm

Weight:  Starting at 1.44 kg

Case Color:  Black

Case Material:  PC + 20% CF

What's in the Box:

• ThinkPad E14 Gen 6 (14” AMD)
• 65W USB-C® AC Adapter (Supports Rapid Charge)
• Quick Start Guide
